KW coilover suspensions, KW coilover springs, and KW DLC AirSuspensions allow the suspension to be steplessly lowered within the framework of the certified technical component report.
…more
KW V2 Comfort
The most individual sport suspension with maximum comfort and adjustable rebound damping.
The rebound stage damping is precisely tuned to the respective vehicle on our in-house drive dynamics test facility, with the setting fixed in the mid range.
…moreTwo-Step Compression Stage Valve with Low-Speed
The patented compression stage valve with TVC-A technology features two separate spring pre-tensioned valves for small and large volume flow.
…moreThe KW coilover spring seat is made from a wear resistant and friction-optimized polyamide composite material with a stainless steel insert.
…moreThe Perfect Height-Adjustable Coilover
In comparison to common coilovers, KW uses a friction -optimized and dirt insensitive trapezoidal thread.
…moreKW’s coilover suspension struts are manufactured from high-quality stainless steel that is rust-proof.
…moreThe use of KW reservoirs provides additional volume for additional oil and additional cooling capacity for particularly high-stressed systems.
…moreTesting Like in Formula 1
Used regularly by automobile manufacturers and international racing teams, KW’s in-house 7-post drive dynamics test facility optimally tunes the KW coilover suspensions according to the design and target group.
…moreThe technical component report is always included in the package and outlines the individual options for lowering the suspension of the respective vehicle.
…moreDepending on the vehicle application, the aluminum uniball top mounts feature scaled camber adjustment and caster can be optionally adjusted.
…moreWith KW’s hydraulic lift system (HLS) the body can be raised for more ground clearance at the touch of a button, even while driving.
…moreWith the KW iSuspension apps, customer-specific adaptations can be made simply and intuitively via one’s own smartphone.
…more(Twin Valve Rebound - Adjustable)
The two-step, patented TVR-A technology enables the small volume to flow through an adjustable, conical low-speed bypass in the case of slow damper speeds, while in the case of higher piston speeds, the main rebound stage valve opens for the large volume flows.
…more(Twin Valve Compression Adjustable)
The patented compression stage valve with TVC-A technology features two separate spring pre-tensioned valves for low and high volume flows.
…more(Twin Valve Compression Low Highspeed-Adjustable)
High-end motor sports technology for the most demanding street performance and track performance customers. Two separate valves and a 2-way adjustable compression stage valve enable separate compression damping changes for low and high-speed.
…moreTwin-Valve Compression with Adjustable Low/High Speed
This is the high-end motor sports technology for the most demanding street and track performance customers.
…more-
Customized Suspension Lowering
KW coilover suspensions, KW coilover springs, and KW DLC AirSuspensions allow the suspension to be steplessly lowered within the framework of the certified technical component report.
…more -
Rebound
The rebound stage damping is precisely tuned to the respective vehicle on our in-house drive dynamics test facility, with the setting fixed in the mid range.
…more -
Compression (Low)
Two-Step Compression Stage Valve with Low-Speed
The patented compression stage valve with TVC-A technology features two separate spring pre-tensioned valves for small and large volume flow.
…more -
Composite Spring Seat
The KW coilover spring seat is made from a wear resistant and friction-optimized polyamide composite material with a stainless steel insert.
…more -
Trapezoidal Thread
The Perfect Height-Adjustable Coilover
In comparison to common coilovers, KW uses a friction -optimized and dirt insensitive trapezoidal thread.
…more -
INOX-LINE
KW’s coilover suspension struts are manufactured from high-quality stainless steel that is rust-proof.
…more -
Reservoir
The use of KW reservoirs provides additional volume for additional oil and additional cooling capacity for particularly high-stressed systems.
…more -
KW 7-post Driving Dynamics Test
Testing Like in Formula 1
Used regularly by automobile manufacturers and international racing teams, KW’s in-house 7-post drive dynamics test facility optimally tunes the KW coilover suspensions according to the design and target group.
…more -
Technical Component Report
The technical component report is always included in the package and outlines the individual options for lowering the suspension of the respective vehicle.
…more -
Unibal Top Mount
Depending on the vehicle application, the aluminum uniball top mounts feature scaled camber adjustment and caster can be optionally adjusted.
…more -
Hydraulic Elevation
With KW’s hydraulic lift system (HLS) the body can be raised for more ground clearance at the touch of a button, even while driving.
…more -
App-Control
With the KW iSuspension apps, customer-specific adaptations can be made simply and intuitively via one’s own smartphone.
…more -
Rebound Stage
Twin Valve Rebound – Adjustable
The two-step, patented TVR-A technology enables the small volume to flow through an adjustable, conical low-speed bypass in the case of slow damper speeds, while in the case of higher piston speeds, the main rebound stage valve opens for the large volume flows.
…more -
Compression Stage
Twin Valve Compression – Adjustable
The patented compression stage valve with TVC-A technology features two separate spring pre-tensioned valves for low and high volume flows.
…more -
Compression Stage
Twin Valve Compression Low Highspeed – Adjustable
High-end motor sports technology for the most demanding street performance and track performance customers. Two separate valves and a 2-way adjustable compression stage valve enable separate compression damping changes for low and high-speed.
…more -
Compression (Low&High)
Twin-Valve Compression with Adjustable Low/High Speed
This is the high-end motor sports technology for the most demanding street and track performance customers.
…more

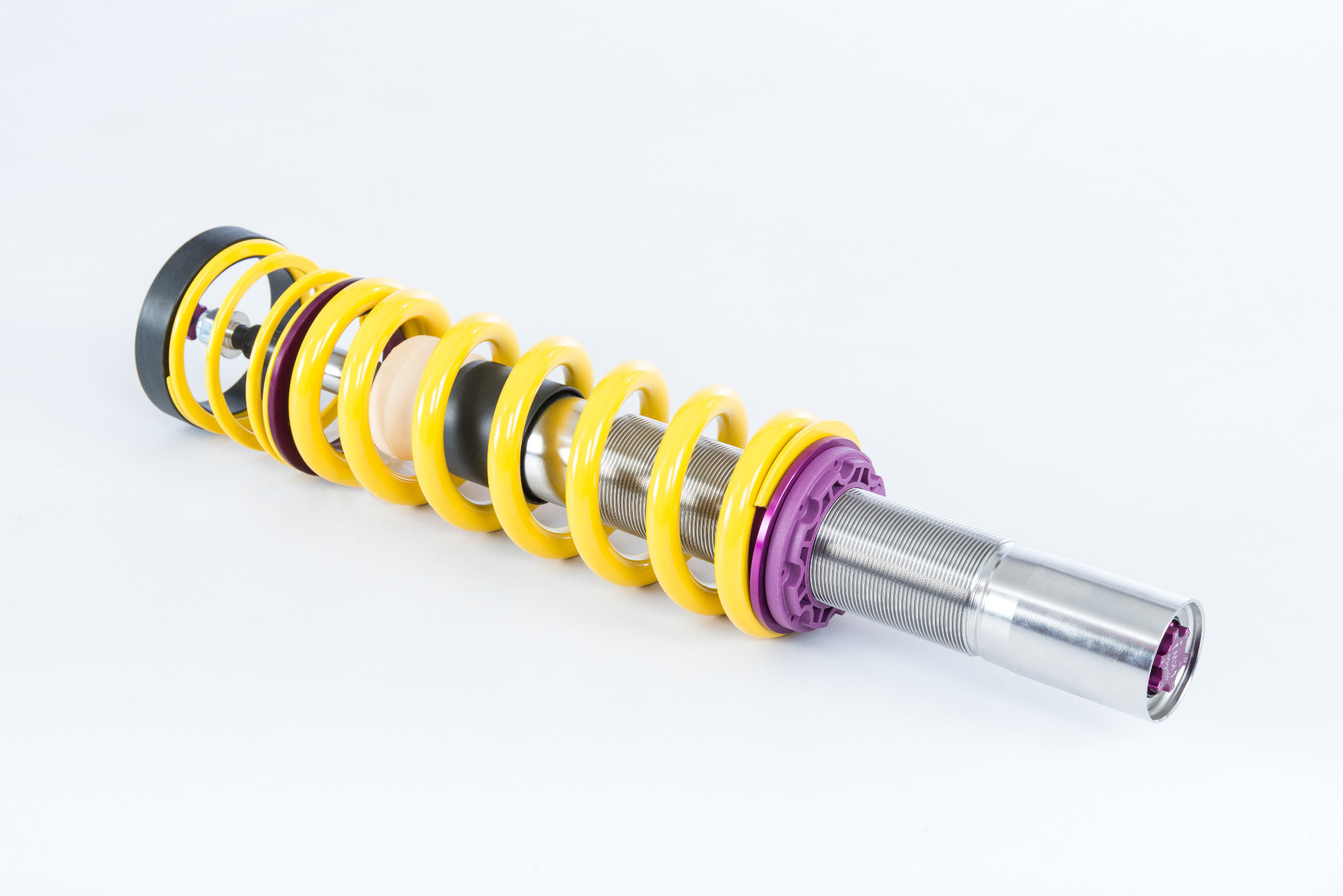

Is your factory sport suspension too firm? Do you want a sporty look and driving dynamics without having to compromise comfort? KW V2 comfort coilovers take the already stellar ride and reputation of KW suspensions coilover systems to the next level of comfort. Designed specifically to maximize comfort KW V2 Comfort coilovers provide a subtle lowering with adjustable ride height and rebound damping adjustability allowing the handling or the comfort to be individually tailored as desired via the integrated rebound adjustment knobs. KW V2 Comfort coilovers offer the perfect compromise of driving dynamics and ride comfort.

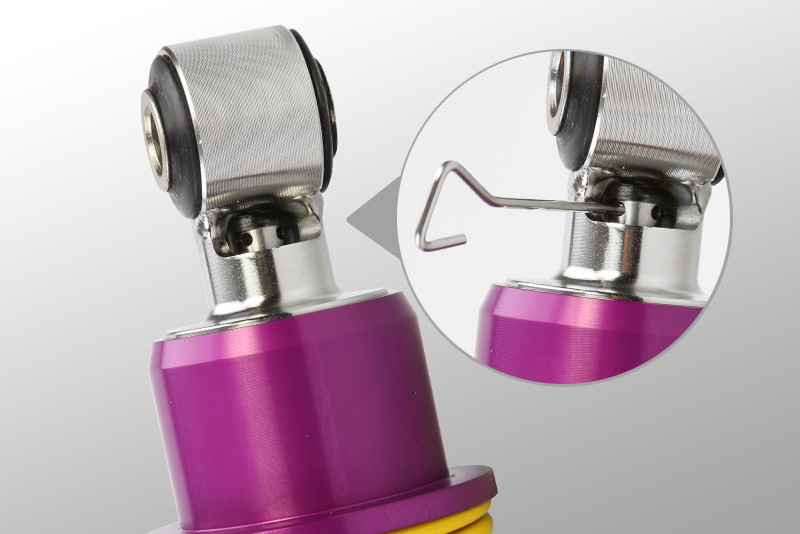

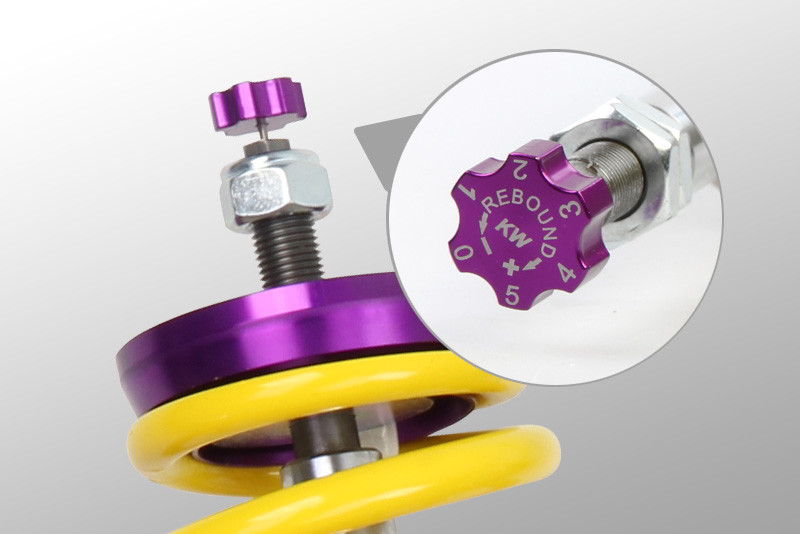

Specifically Engineered Setup – factory preset damper setup with adjustable rebound damping
With the KW V2 Comfort coilover kit, your comfort-oriented driving pleasure is the main focus. That's why our test engineers evaluate the setups on numerous highways, country roads with various road surface types. The KW V2 Comfort coilover kits are suitable for all drivers who want to combine the joy of a decent lowering with driving comfort. With the 16-click adjustable rebound damping (TVR-A-technology), you can tune the KW dampers on the KW V2 Comfort coilover kits to me more comfortable or more sporty.
TVR-A Technology:
The two-stage, patented TVR-A (Twin Valve Rebound - Adjustable) technology enables a small volume of oil to flow through an adjustable, conically shaped, low-speed bypass during low damper speeds, while in the case of higher damper speeds, the main rebound stage valve opens allowing a larger volumn of oil to flow. This provides a big improvement in terms of ride comfort without influencing the safety-relevant high-speed range. There are 16 precise clicks available for individual settings, so you can choose between more comfort or more body control.
Continuous Ride Height Adjustment
The KW V2 Comfort coilovers, made using "inox-line" stainless steel technology, enables a vehicle-specific lowering within the tested adjustment range of 10 to 40 mm. Built with paramount attention to detail and using only the highest quality components, the stainless steel KW V2 Comfort coilover struts are 100 percent corrosion-resistant and have an unlimited lifespan. The dirt resistant trapezoid shaped threads and the adjustable composite spring seat mean that the ability to adjust the ride height of the vehicle will not be affected even after many years of driving allowing you to emphasize the sportiness of your vehicle visually.
The Benchmark for Coilovers
As with all KW coilovers our engineers develop vehicle specific damper settings which undergo comprehensive testing on the Nürburgring Nordschleife and in our KW 7-post Driving Dynamic Test Center. With a KW coilover kit the driving experience is more dynamic and direct. With the rebound adjustability on our Street Comfort coilovers you can have more direct influence on the handling or comfort of the car. With 16 precise clicks you can adjust the KW dampers (firmer or more comfortable) without affecting the the compression damping fine tuned by our engineers.
×
