KW coilover suspensions, KW coilover springs, and KW DLC AirSuspensions allow the suspension to be steplessly lowered within the framework of the certified technical component report.
…more
KW V4 Coilovers
Ultra high performance technology bred from motorsports.
3-way independently adjustable damper technology.
The rebound stage damping is precisely tuned to the respective vehicle on our in-house drive dynamics test facility, with the setting fixed in the mid range.
…moreTwo-Step Compression Stage Valve with Low-Speed
The patented compression stage valve with TVC-A technology features two separate spring pre-tensioned valves for small and large volume flow.
…moreThe KW coilover spring seat is made from a wear resistant and friction-optimized polyamide composite material with a stainless steel insert.
…moreThe Perfect Height-Adjustable Coilover
In comparison to common coilovers, KW uses a friction -optimized and dirt insensitive trapezoidal thread.
…moreKW’s coilover suspension struts are manufactured from high-quality stainless steel that is rust-proof.
…moreThe use of KW reservoirs provides additional volume for additional oil and additional cooling capacity for particularly high-stressed systems.
…moreTesting Like in Formula 1
Used regularly by automobile manufacturers and international racing teams, KW’s in-house 7-post drive dynamics test facility optimally tunes the KW coilover suspensions according to the design and target group.
…moreThe technical component report is always included in the package and outlines the individual options for lowering the suspension of the respective vehicle.
…moreDepending on the vehicle application, the aluminum uniball top mounts feature scaled camber adjustment and caster can be optionally adjusted.
…moreWith KW’s hydraulic lift system (HLS) the body can be raised for more ground clearance at the touch of a button, even while driving.
…moreWith the KW iSuspension apps, customer-specific adaptations can be made simply and intuitively via one’s own smartphone.
…more(Twin Valve Rebound - Adjustable)
The two-step, patented TVR-A technology enables the small volume to flow through an adjustable, conical low-speed bypass in the case of slow damper speeds, while in the case of higher piston speeds, the main rebound stage valve opens for the large volume flows.
…more(Twin Valve Compression Adjustable)
The patented compression stage valve with TVC-A technology features two separate spring pre-tensioned valves for low and high volume flows.
…more(Twin Valve Compression Low Highspeed-Adjustable)
High-end motor sports technology for the most demanding street performance and track performance customers. Two separate valves and a 2-way adjustable compression stage valve enable separate compression damping changes for low and high-speed.
…moreTwin-Valve Compression with Adjustable Low/High Speed
This is the high-end motor sports technology for the most demanding street and track performance customers.
…more-
Customized Suspension Lowering
KW coilover suspensions, KW coilover springs, and KW DLC AirSuspensions allow the suspension to be steplessly lowered within the framework of the certified technical component report.
…more -
Rebound
The rebound stage damping is precisely tuned to the respective vehicle on our in-house drive dynamics test facility, with the setting fixed in the mid range.
…more -
Compression (Low)
Two-Step Compression Stage Valve with Low-Speed
The patented compression stage valve with TVC-A technology features two separate spring pre-tensioned valves for small and large volume flow.
…more -
Composite Spring Seat
The KW coilover spring seat is made from a wear resistant and friction-optimized polyamide composite material with a stainless steel insert.
…more -
Trapezoidal Thread
The Perfect Height-Adjustable Coilover
In comparison to common coilovers, KW uses a friction -optimized and dirt insensitive trapezoidal thread.
…more -
INOX-LINE
KW’s coilover suspension struts are manufactured from high-quality stainless steel that is rust-proof.
…more -
Reservoir
The use of KW reservoirs provides additional volume for additional oil and additional cooling capacity for particularly high-stressed systems.
…more -
KW 7-post Driving Dynamics Test
Testing Like in Formula 1
Used regularly by automobile manufacturers and international racing teams, KW’s in-house 7-post drive dynamics test facility optimally tunes the KW coilover suspensions according to the design and target group.
…more -
Technical Component Report
The technical component report is always included in the package and outlines the individual options for lowering the suspension of the respective vehicle.
…more -
Unibal Top Mount
Depending on the vehicle application, the aluminum uniball top mounts feature scaled camber adjustment and caster can be optionally adjusted.
…more -
Hydraulic Elevation
With KW’s hydraulic lift system (HLS) the body can be raised for more ground clearance at the touch of a button, even while driving.
…more -
App-Control
With the KW iSuspension apps, customer-specific adaptations can be made simply and intuitively via one’s own smartphone.
…more -
Rebound Stage
Twin Valve Rebound – Adjustable
The two-step, patented TVR-A technology enables the small volume to flow through an adjustable, conical low-speed bypass in the case of slow damper speeds, while in the case of higher piston speeds, the main rebound stage valve opens for the large volume flows.
…more -
Compression Stage
Twin Valve Compression – Adjustable
The patented compression stage valve with TVC-A technology features two separate spring pre-tensioned valves for low and high volume flows.
…more -
Compression Stage
Twin Valve Compression Low Highspeed – Adjustable
High-end motor sports technology for the most demanding street performance and track performance customers. Two separate valves and a 2-way adjustable compression stage valve enable separate compression damping changes for low and high-speed.
…more -
Compression (Low&High)
Twin-Valve Compression with Adjustable Low/High Speed
This is the high-end motor sports technology for the most demanding street and track performance customers.
…more

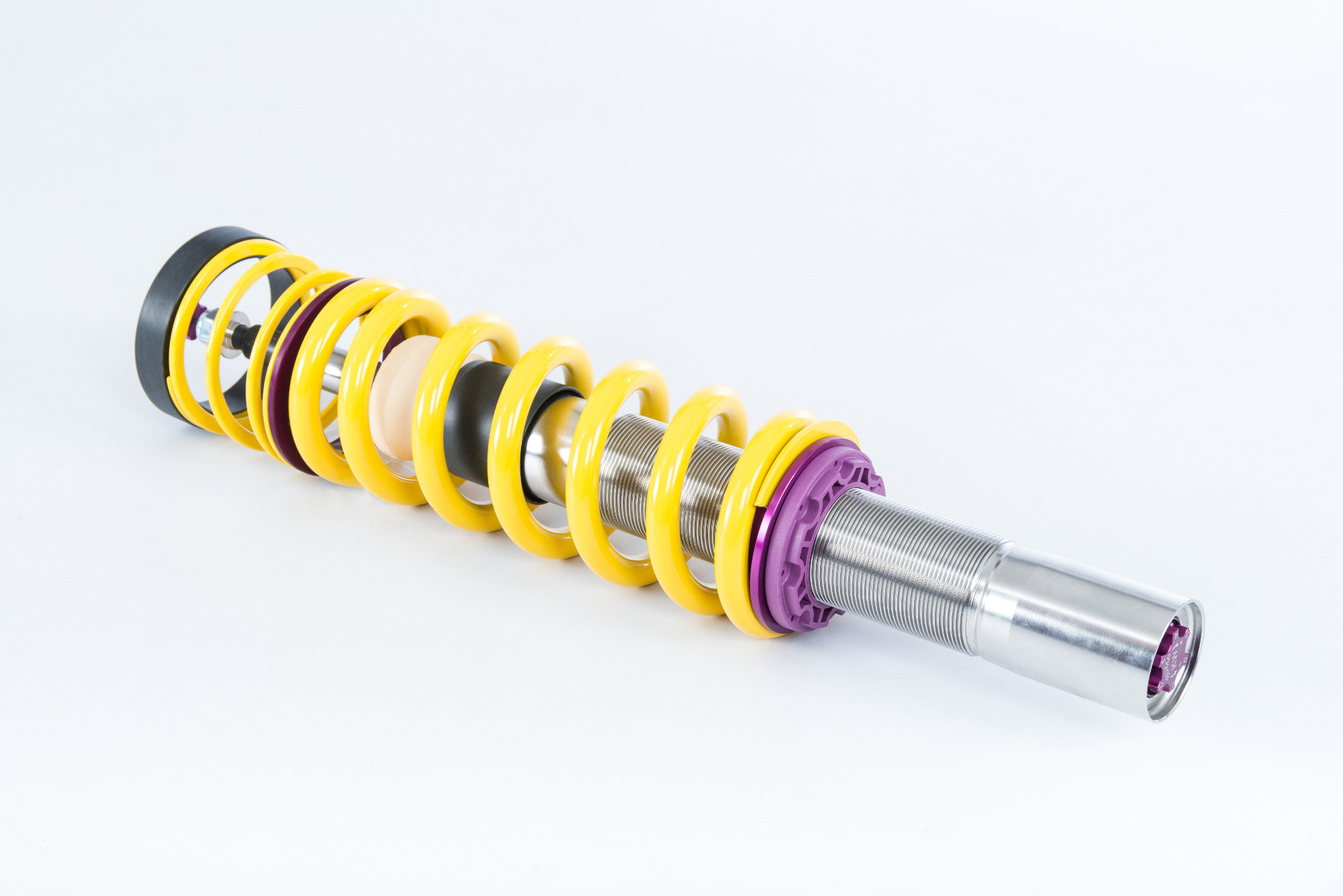

KW V4 coilovers are a combination of our innovative, race proven technology, as well as decades of experience tuning high end sports cars, super sedans and exotics such as the Audi R8, Audi RS6, BMW M5, Lamborghini Aventador LP 750-4 SV, Dodge Charger SRT Hellcat, Mercedes AMG GT and more. In addition to the individually adjustable ride height the KW V4 coilover kit allows an independent adjustment of the rebound damping as well as the low-speed and high-speed compression damping. Each KW V4 coilover kit is delivered with a vehicle-specific comfort setting and with the integrated adjustment controls the damping characteristics can be set quickly and intuitively transformed to an optimized performance setup.
Specifically Engineered Setup – Vehicle specific with independentley adjustable rebound, high and low speed compression.
The 3-way adjustable high-performance dampers in the KW V4 coilover kits feature independent adjustment of the rebound damping utilizing patented TVR-A technology, as well as the low speed and high speed compression damping utilizing TVCLH-A technology. The KW V4 coilovers are based upon successful race technology utilized by multiple overall winners of the ADAC Zurich 24h Nürburgring race.The new KW V4 coilovers are exclusively developed for select high-performance vehicles, which benefit greatly from the KW suspension technology to improve their driving dynamics.
Rebound Control
Compression Damping Controls
(Low speed & High speed)
KW V4 for Lamborghini Aventador
TVR-A Technology:
The two-stage, patented TVR-A (Twin Valve Rebound - Adjustable) technology enables a small volume of oil to flow through an adjustable, conically shaped, low-speed bypass during low damper speeds, while in the case of higher damper speeds, the main rebound stage valve opens allowing a larger volumn of oil to flow. This provides a big improvement in terms of ride comfort without influencing the safety-relevant high-speed range. There are 16 precise clicks available for individual settings, so you can choose between more comfort or more body control.
TVCLH-A Technology:
With 6 precise clicks in low-speed and 14 precise clicks in high-speed range of the compression damping, the cross-sections in the V4 valves are decreased or increased, in order to achieve either more or less compression damping. The TVCLH-A (Twin Valve Compression Low High - Adjustable) technology has an engineered blow-off characteristic providing a large cross-section that allows substantial low-speed forces to provice optimum support of the vehicle body without unsettling the body in the case of sudded high damper stimulation induced by the wheels, like driving over apex curbing. The separate low and high-speed settings are always supplied with an additional rebound setting utilizing TVR-A technology for a truely independent 3-way damper setup.
Continuous Ride Height Adjustment
With KW V4 coilovers you can achieve maximum lowering within an approved lowering range that ensures a proper functioning suspension with adequate travel after your car is lowered. Even after years of use you can easily adjust the ride height thanks to the dirt resistant trapezoid thread and composite adjustment collar.
The Benchmark for Coilovers
As with all KW coilovers our engineers develop vehicle specific damper and spring specifications which undergo comprehensive testing on the Nürburgring Nordschleife and in our KW 7-post Driving Dynamic Test Center. With a KW V4 coilover kit the driving experience is more dynamic and direct.
×
